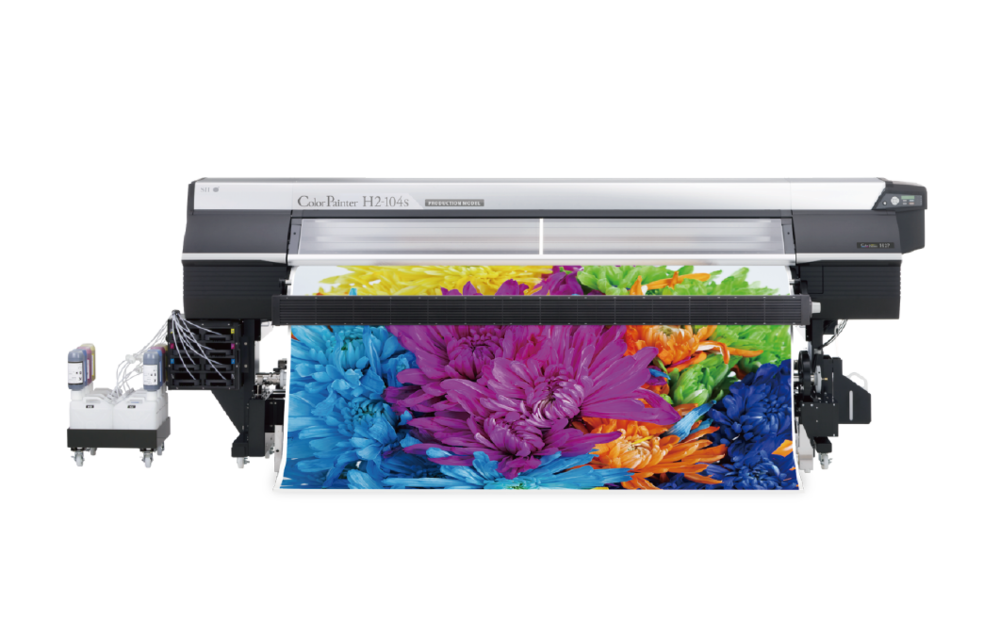

• seiko H2P104S printer seiko H2P74S printer



SIZE 104”/ 74”

Printing speed

Normal 57.1m2/h

High Speed 100m2/h

Quality 31.5m2/h2


Resolution

900 dpi

Maximum Print Width 2632 mm / 1890 mm

Ink VX INK

Ink Capacity 8L

Q'ty :

Add To Inquiry

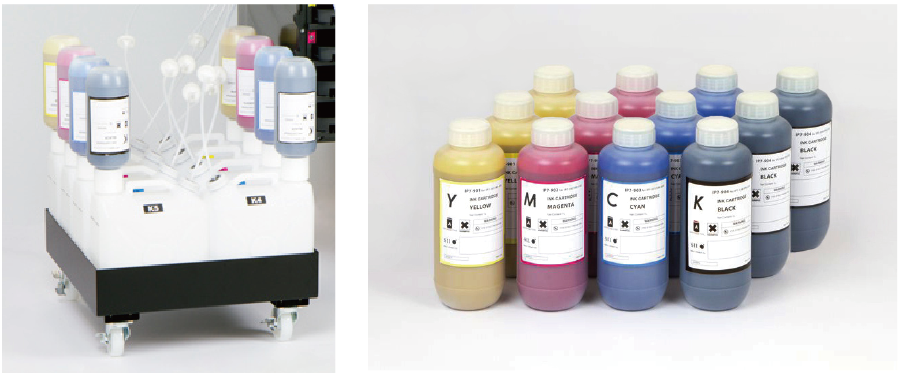

4-color ink system Large



Easy to replenish reservoirs hold 8 liters of inks per color,freeing you from worrying about


guarding  remaining ink amounts during round

the color operations.The combination of new

VX Inks and 4 color printing makes running

costs lower than you can imagine.




High Quality



Dynamically processing 3 different drop sizes to maximize image quality

andmaintain proper color density.


This innovative nozzle compensation function re-maps clogged nozzles

so you can continue to print with perfect image quality.


Smart Pass Technology 3 uses the most advanced algorithms and improved

mask patterns to reduce overspray and eliminate pass-to-pass banding.


CP Manager software allows you to monitor printer status, change print settings,

Operation and troubleshooting guides are also available through CP_Manager.

check ink levels, or see suggested maintenance on your PC.


Equipped with a function to give full play to the extreme Inkjet Printer software






Application



 Alignment of double sided printing may be affected by media settings and media advance  adjustment.

 Double sided print can’t be used with permeable media like flexible face materials.

 Mutiple take up system configuration:Loose/Inner, Loose/Outer, Tension/Inner, Tension/Outer.







SPECIFICATION

Model

ColorPainter H2P-104S

ColorPainter H2P-74S

Print Heads

Industrial drop-on-demand piezo-electric

Number of Print Heads

508 nozzles

Resolution

900 dpi

Maximum Media Width

2642 mm

1900 mm

Maximum Print Width

2632 mm

1890 mm

Media Weight

120 kg

50 kg

Maximum Media Diameter

350 mm

220 mm

Paper Feed Method

Roll

Margin Size

5mm on each edge(with rolled media,without edge guards)



Ink

Types

GX Ink/IX INK/Neon Ink

Colors of Ink

8 color(C,M,Y,K,Lc,Lm,Gray,Light Gray) or 4 color(C,M,Y,K)x2

Ink Capacity

4L

Media

Vinyl/banner/backlit films/textiles

Built-in Heater

3 way independently controlled heater (front/print/rear)

Take-up System

Tension/Loose/Inside/Outside

Interface

USB 2.0

Power Consumption

1440 W (in operation)

Power Voltage

200 to 240 VAC,±10%

Operating Environment

15-30,10to80% (with no condensation)

Storage Environment

5-35℃,10to80% (with no condensation)

External Dimension

4126(W)x1366(D)x1513(H)mm

3383(W)x1275(D)x1511(H)mm

Weight

600 kg

450 kg
