SEIKO W64S
|
|
||||||||||||||||||||||||
|
||||||||||||||||||||||||
Q'ty :
Quality Print

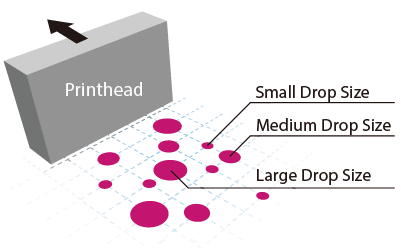

Dynamically processing 3 different drop sizes to maximize image quality and maintain proper color density, DDP Technology produces outstanding image quality at the highest speeds with less graininess.
Innovative nozzle compensation function re-maps clogged nozzles so you can continue to print with perfect image quality. This unique technology works with no speed loss.
Smart Pass Technology 3 uses the most advanced algorithms and improved mask patterns to reduce over spray and eliminate pass-to-pass banding.

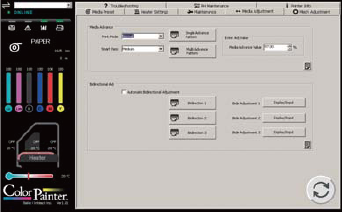

CP Manager software allows you to monitor printer status, change print settings, check ink levels, or see suggested maintenance.
Speed Print/High productivity
W-64S use Industrial nozzle, while both the high-speed inkjet and color quality.
Can automatically detect the thickness of the material with printing the nozzle and the distance to maintain the best material to achieve the best printing quality.
For various kinds of material, PVC, PP banner, canvas, mesh, FLEX, Backlit media.Tension mechanism controls the drag to keep it constant from the beginning of a roll to the end of a roll.
This eliminates feed adjustments and keeps image quality maximized.
The blower allows the printer to take-up the media while printing even at the class fastest speed,and is turned on/off save power consumption when necessary.
Standard media rotary cutter runs in both direction makes your media cutting operation easier.Media clips on both sides hold the media ti prevent it from dropping on the floor and getting dirty after cutting.
|
SPECIFICATION |
||
|
Model |
ColorPainter W-64S |
|
|
Print Heads |
Industrial drop-on-demand piezo-electric |
|
|
Number of Print Heads |
254 nozzles |
|
|
Resolution |
900 dpi |
|
|
Print Speeds |
2.4-17.8m2/h |
|
|
Maximum Media Width |
1626 mm |
|
|
Maximum Print Width |
1616 mm |
|
|
Media Weight |
24 kg |
|
|
Maximum Media Diameter |
180 mm |
|
|
Maximum Printing Length |
50 m |
|
|
Distance Accuracy |
±0.3% or±0.5mm,whichever greater |
|
|
Paper Feed Method |
Roll |
|
|

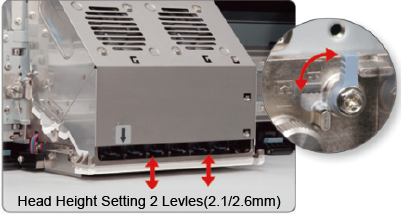

Head Height |
2 Levels (2.1/2.6mm) |
|
|
Margin Size |
1/5”(5mm) when using roll without edge guard |
|
|
Ink |
Types |
GX Ink/IX INK |
|
Colors of Ink |
6 color(C/M/Y/K/Lc/Lm) |
|
|
Ink Capacity |
500 ml |
|
|
Media |
Vinyl/banner/backlit films/textiles… |
|
|
Built-in Heater |
3 way independently controlled heater (front/print/rear) |
|
|
Take-up System |
Tension/Loose/Inside/Outside |
|
|
Interface |
USB 2.0 |
|
|
Power Consumption |
1350 W (in operation) |
|
|
Power Voltage |
110 VAC±10% |
|
|
Operating Environment |
15-30℃,10to80% (with no condensation) |
|
|
Storage Environment |
5-35℃,10to80% (with no condensation) |
|
|
External Dimension |
2830(W)x830(D)x1225(H)mm |
|
|
Weight |
205 kg |
|
