• seiko h2104s printer seiko h274s printer



SIZE 104”/ 74”

Printing speed

Normal 28.6m2/h

High Speed 50m2/h

Quality 15.2m2/h


Resolution

900 dpi

Maximum Print Width 2632 mm / 1890 mm

Ink GX INK

Ink Capacity 1500 ml

Q'ty :

Add To Inquiry

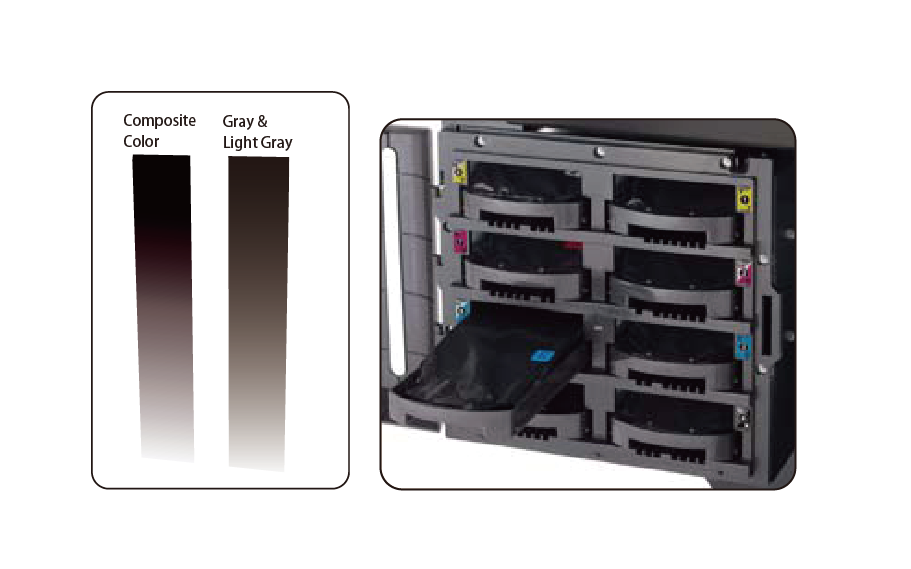

Special Gray



With Gray and Light Gray inks.The ColorPainter H2-104S/H2-74S

is capable of expressing real gradation,light shadows and metallic

texture which cannot be achievable with composite colors.






High Quality



Dynamically processing 3 different drop sizes to maximize image

quality and maintain proper color density.



This innovative nozzle compensation function re-maps clogged

nozzles so you can continue to print with perfect image quality.



Smart Pass Technology 3 uses the most advanced algorithms

and improved mask patterns to reduce over spray and eliminate

pass-to-pass banding.


CP Manager software allows you to monitor printer status,

change print settings, check ink levels, or see suggested

maintenance on your PC.Operation and trouble shooting

guides are also available through CP_Manager.


Equipped with a function to give full play to

the extreme Inkjet Printer software.



Application

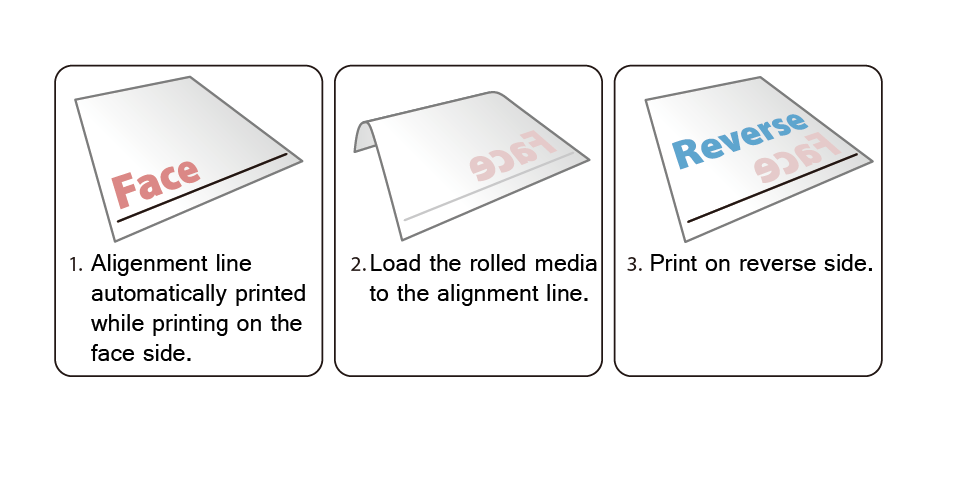

Alignment of double sided printing may be affected by media settings and media advance adjustment.

Double sided print can’t be used with permeable media like flexible face materials.

Multiple take up system configuration:Loose/Inner, Loose/Outer,Tension/Inner,Tension/Outer.







SPECIFICATION

Model

ColorPainter H2-104S

ColorPainter H2-74S

Print Heads

Industrial drop-on-demand piezo-electric

Number of Print Heads

508 nozzles

Resolution

900 dpi

Maximum Media Width

2642 mm

1900 mm

Maximum Print Width

2632 mm

1890 mm

Media Weight

120 kg

50 kg

Maximum Media Diameter

350 mm

220 mm

Paper Feed Method

Roll

Margin Size

5mm on each edge (with rolled media,without edge guards)



Ink

Types

GX Ink/IX INK/Neon Ink

Colors of Ink

8 color(C,M,Y,K,Lc,Lm,Gray,Light Gray) or 4 color(C,M,Y,K)x2

Ink Capacity

1500 ml

Media

Vinyl/banner/backlit films/textiles

Built-in Heater

3 way independently controlled heater (front/print/rear)

Take-up System

Tension/Loose/Inside/Outside

Interface

USB 2.0

Power Consumption

1440 W (in operation)

Power Voltage

200 to 240 VAC,±10%

Operating Environment

15-30℃,10to80% (with no condensation)

Storage Environment

5-35℃,10to80% (with no condensation)

External Dimension

4126(W)x1366(D)x1513(H)mm

3383(W)x1275(D)x1511(H)mm

Weight

600 kg

450 kg
