• jetstar W64UV printer

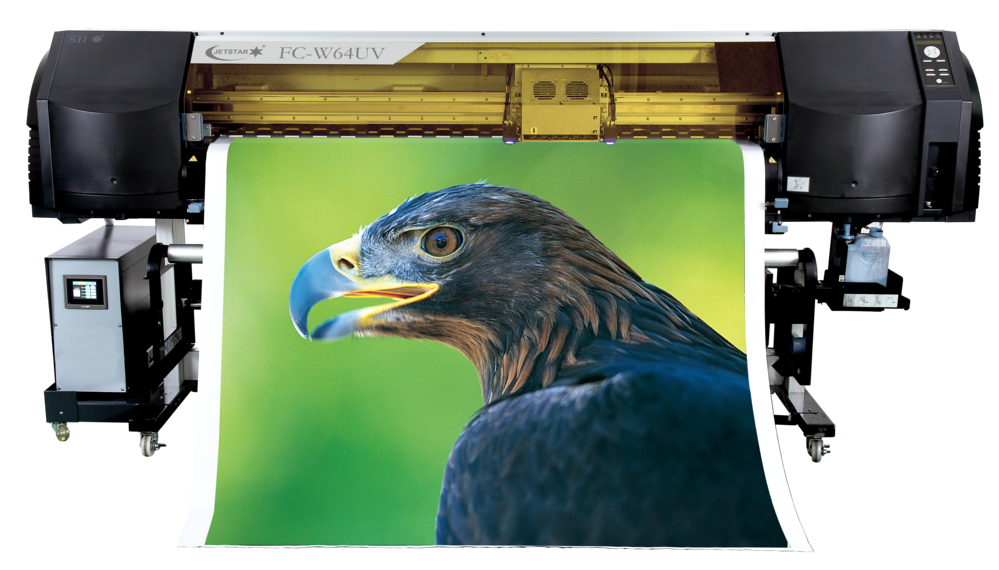

FC-W64UV


SIZE

64"


Printing speed

Normal 11.98m2/h

High Speed 17.88m2/h

High Quality 4.78m2/h

Quality 7.28m2/h


Resolution

900 dpi

Maximum Print Width 1616 mm

Ink SJ UV INK  w64s-color-.png

Ink Capacity 500 ml

Q'ty :

Add To Inquiry

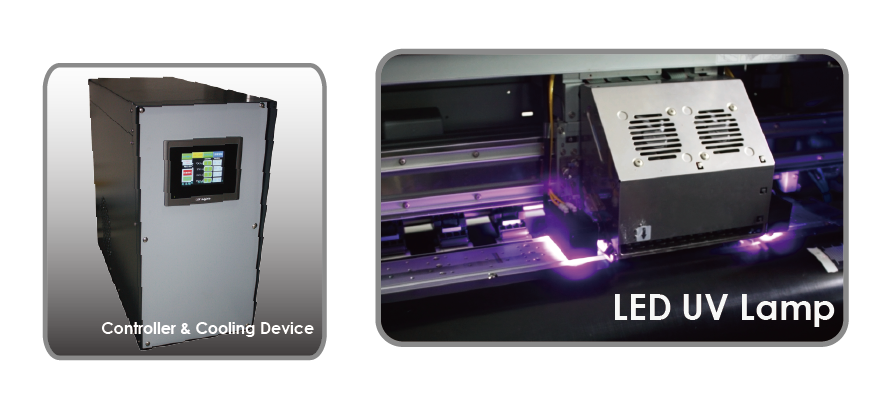

Preating speed and LED UV system/High productivity



LED UV Lamp fast drying printing technology,with the

material perfect fuction.LED UV controller can effectively

control water circulation,cooling LED UV lamp,to

achieve the highest printing efficiency.

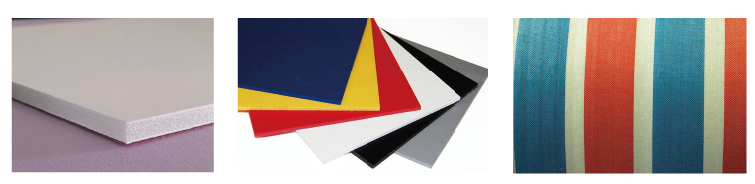

FC-W64UV can print various kinds of roll material,PVC,

PP banner,canvac,mesh,FLEX,Backlit media.Accuracy

and high quality printing with a wide range of material

is the highest cost efficiency machine.Combination for

headheight adjustment ensures optimumprinting quality

for various types of media.



The blower allows the printer to take-up the media while printing even

at the class fastest speed,and is turned on/off save power consumption

when necessary.

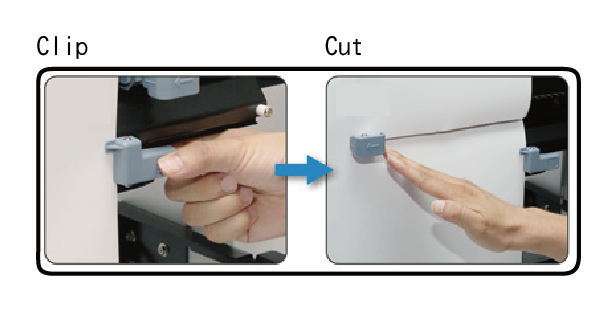

Standard media rotary cutter runs in both direction makes yourmedia

cutting operation easier.Media clips on both sides hold the media it

prevent it from dropping on the floor and getting dirty after cutting.







SJ UV Ink/Color possibilities




The newly developed SJ Inks offer a wide color gamut ,high vividness,

high density, excellent outdoor durability and low running costs in

addition to the low level of oder.






Smart printing technology/ High Print Quailty



Dynamically processing 3 different drop sizes to maximize

image quality and maintain proper color density.


This innovative nozzle compensation function re-maps clogged

nozzles so you can continue to print with perfect image quality.


SmartPassTechnology 3 uses the most advanced algorithms and improved

mask patterns to reduce overspray and eliminate pass-to-pass banding.


CP Manager software allows you to monitor printer status, change print settings,

check ink levels, or see suggested maintenance on your PC.Operation and trouble

shooting guides are also available through CP_Manager.


Equipped with a function to give full play to the extreme

Inkjet Printer software.







SPECIFICATION

Model

W64UV

Print Heads

SEIKO 256

Resolution

900 dpi

Maximum Print Width

1616 mm

Media Weight

24 kg

Paper Feed Method

Roll



Ink

Types

SJ UV Ink

Colors of Ink

6 colcor (C/M/Y/K/Lc/Lm)

Ink Capacity

500 ml

Media

Vinyl/banner/backlit films/textiles…

Take-up System

Tension/Loose/Inside/Outside

Interface

USB 2.0

Power Consumption

Printer

1350 W (in operation)

LED UV Controller

1100 W (in operation)

Power Voltage

110 VAC±10%

Operating Environment

15-30,10to80% RH(with no condensation)

Storage Environment

5-35℃,10to80% RH(with no condensation)

External Dimension

2830(W)x830(D)x1225(H)mm

Weight

225 kg
