• jetstar v64uv printer


FC-V64UV


SIZE

64"


Printing speed

Normal 16.1m2/h

High Speed 30m2/h

High Quality 8m2/h


Resolution

720 dpi

Maximum Print Width 1616 mm

Ink SJ UV INK  w64s-color-.png

Ink Capacity 500 ml

Q'ty :

Add To Inquiry

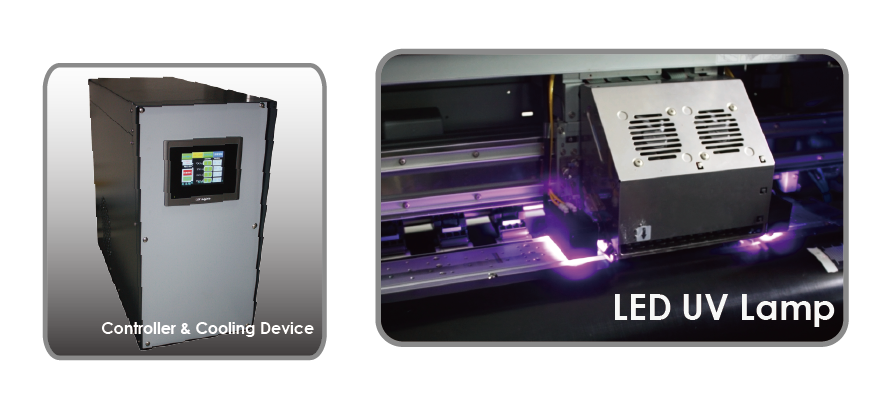

LED UV System



FC-V64UV adopts LED UV Lamp fast drying

printing technology,with the material perfect

fuction.


LED UV controller can effectively control water

circulation,cooling LED UV lamp,to achieve

the highest printing efficiency.





Powerful Productivity



Carriage head height can be changed high(2.6mm) and low(2.1mm) by manual lever operation for optimum print quality on media with various thickness.Push roller pressure is also adjustable to accommodate.

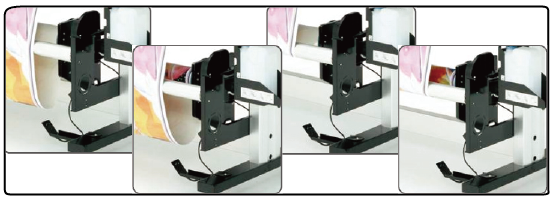

Media take up unit accommodate rolled media up to300mmdiameter and 24Kg weight.

It supports 4 take up modes for various type of applications.


Standard media rotary cutter runs un both directionmakes your media cutting operation.

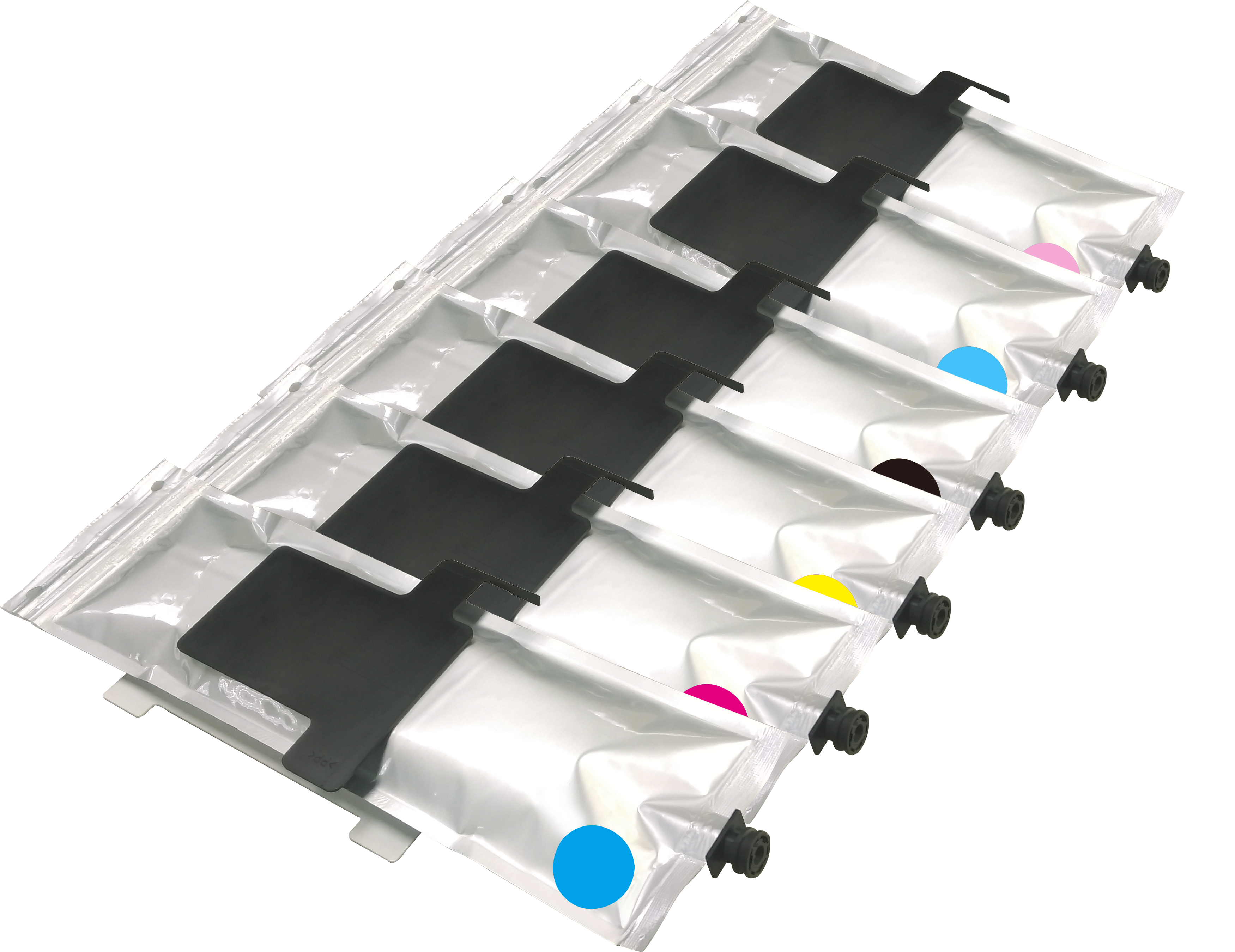

SJ UV Ink



The JETSTAR UV printer use no voc’s SJ series UVInk.

6 color ink set provides the best image quality.







 High Print Quailty



Dynamically processing 3 different drop sizes to maximize

image quality and maintain proper color density.


This innovative nozzle compensation function re-maps clogged

nozzles so you can continue to print with perfect image quality.


SmartPassTechnology 3 uses the most advanced algorithms and improved

mask patterns to reduce overspray and eliminate pass-to-pass banding.


CP Manager software allows you to monitor printer status, change print settings,

check ink levels, or see suggested maintenance on your PC.Operation and trouble

shooting guides are also available through CP_Manager.


Equipped with a function to give full play to the extreme

Inkjet Printer software.







SPECIFICATION

Model

FC- V64UV

Print Heads

Konica 512

Resolution

720 dpi

Maximum Print Width

1616 mm

Media Weight

24 kg

Paper Feed Method

Roll



Ink

Types

SJ UV INK

Colors of Ink

6 color(C/M/Y/K/Lc/Lm)

Ink Capacity

500 ml

Media

Vinyl/banner/backlit films/textiles…..

Take-up System

Tension/Loose/Inside/Outside

Interface

USB 2.0

Power Consumption



Printer

1350 W (in operation)

LED UV Controller

1100 W (in operation)

Power Voltage

110 VAC±10%

Operating Environment

15-30℃,10to80% RH(with no condensation)

Storage Environment

5-35℃,10to80% RH(with no condensation)

External Dimension

2830(W)x830(D)x1225(H)mm

Weight

240 kg
