• jetstar HBH104UV printer jetstar HBH74UV printer


FC-HBH104UV / FC-HBH74UV


SIZE

104" / 74"


Printing speed

Normal 28.6m2/h

High Speed 50m2/h

High Quality 15.2m2/h


Resolution

900 dpi

Maximum Print Width 2632 mm / 1890

Ink SJ UV INK      h104uv-color.png

Ink Capacity 1500 ml

Q'ty :

Add To Inquiry

Heavy media loading for roll to roll performance



For roll to roll the printer can load over 50kg and up to 30cm diameter of media.

There are two air shaft to load and unload the medias quickly.








For various kinds of media





Can printer Vinyl/banner/backlit films/textiles...


Mutiple take up system configuration:Loose/Inner, Loose/Outer, Tension/Inner, Tension/Outer.


LED UV Lamp fast drying printing technology,with the material perfect

fuction.LED UV controller can effectively control,cool water circulation,

cooling LED UV lamp, to achieve the highest printing efficiency.

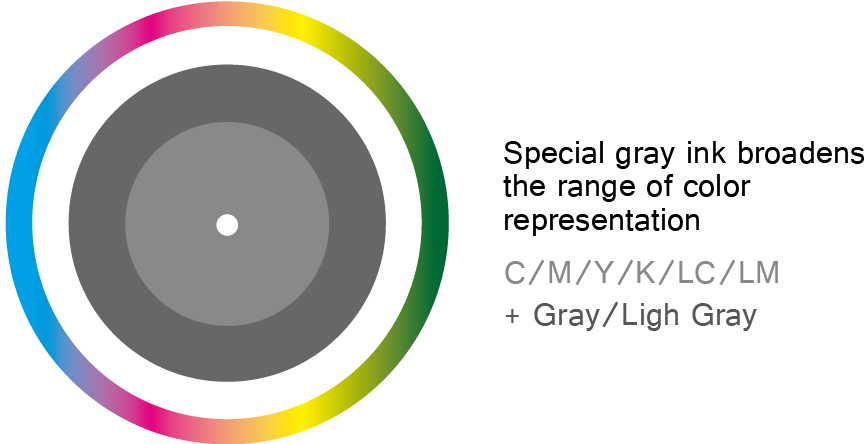

Special gray



Special gray ink broadens the range of color representation.

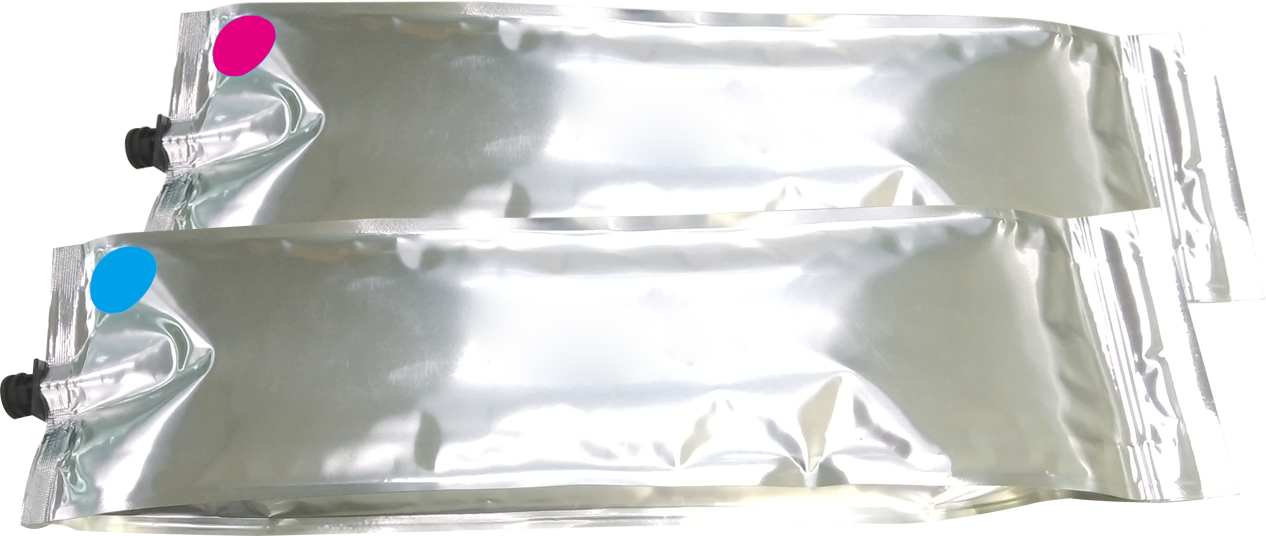

FC-HBH104UV/FC-HBH74UV comes with 1.5-liter large-capacity

ink cartridges and built-in sub tanks to support continuous high

-volume printing.The built-in sub tanks allow you to easily replace

the ink cartridges with out interrupting print jobs.








Smart printing technology



Dynamically processing 3 different drop sizes to maximize image quality and

maintain proper color density.


This innovative nozzle compensation function re-maps clogged nozzles so you

can continue to print with perfect image quality.


SmartPassTechnology 3 uses the most advanced algorithms and improved

mask patterns to reduce overspray and eliminate pass-to-pass banding.



CP Manager software allows you to monitor printer status, change print settings,

check ink levels, or see suggested maintenance on your PC.

Operation and troubleshooting guides are also available through CP_Manager.



Equipped with a function to give full play to the extreme Inkjet Printer software.






SPECIFICATION

Model

FC-HBH104UV

FC-HBH74UV

Print Heads

Seiko 508

Resolution

900 dpi

Maximum Print Width

2632 mm

1890 mm

Media Weight

Roll

50 kg

Platform

80 kg

Paper Feed Method

Roll/Sheet



Ink

Types

SJ UV Ink

Colors of Ink

8 color (C,M,Y,K,Lc,Lm,Gray,Light Gray) or 4 color (C,M,Y,K) x 2

Ink Capacity

1500 ml

Media

Vinyl/banner/backlit films/textiles...

Take-up System

Automatic tension take-up system

Interface

USB 2.0

Power Consumption

Printer

1350 W (in operation)

Platform

6000 W (in operation)

LED UV Controller

1100 W (in operation)



Power Voltage

Printer

220V-60Hz

Platform

220V3ø

LED UV Controller

220V

Operating Environment

15-30,30to70% RH(with no condensation)

Storage Environment

5-35,10to80% RH(with no condensation)
