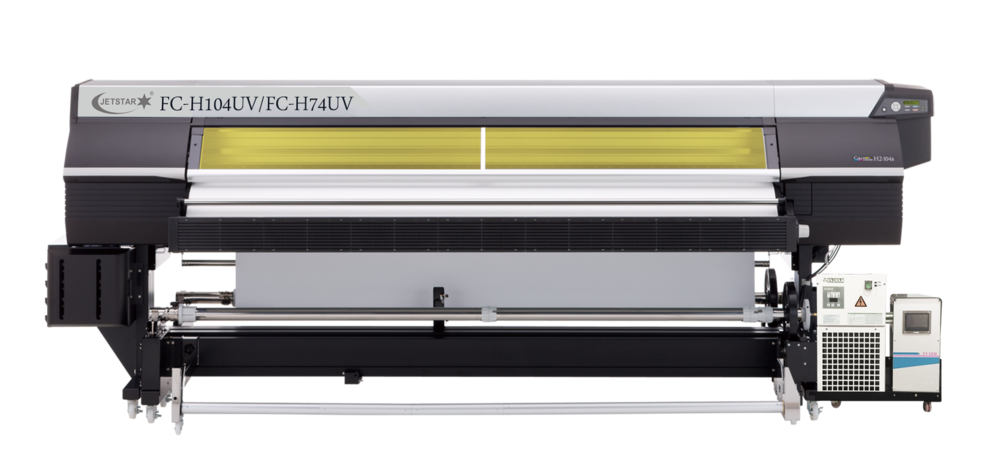

• jetstar h104uv printer jetstar h74uv printer


FC-H104UV/FC-H74UV

SIZE

104" / 74"


Printing speed

(2 X CMKY)

Normal 57.1m2/h

High Speed 100m2/h

High Quality 31.5m2/h


Printing speed

(8 color)

Normal 28.6m2/h

High Speed 50m2/h

High Quality 15.2m2/h


Resolution

900 dpi

Maximum Print Width 2632 mm / 1890 mm

Ink SJ UV INK  h104uv-color.png

Ink Capacity 1500 ml

Q'ty :

Add To Inquiry

High speed/HIGH Quality



Integrating the Smart Pass Technology 3 with Dynamic Dot Printing

Technology,the FC-H104UV/FC-H74UV prints revolutionary higher quality
image while maintaining the high print speed of its predecessor.


The fastest print mode achieves 50m2/h (8-color mode)
and 100 m2/h (DOUBLE CMYK  mode).


The printer is best suited for large format banners and high volume
printing in short turnaround times.




The newly developed SJ Inks offer a wide color gamut ,high

vividness,high density,excellent outdoor durability and low

running costs in addition to the  low level of oder.

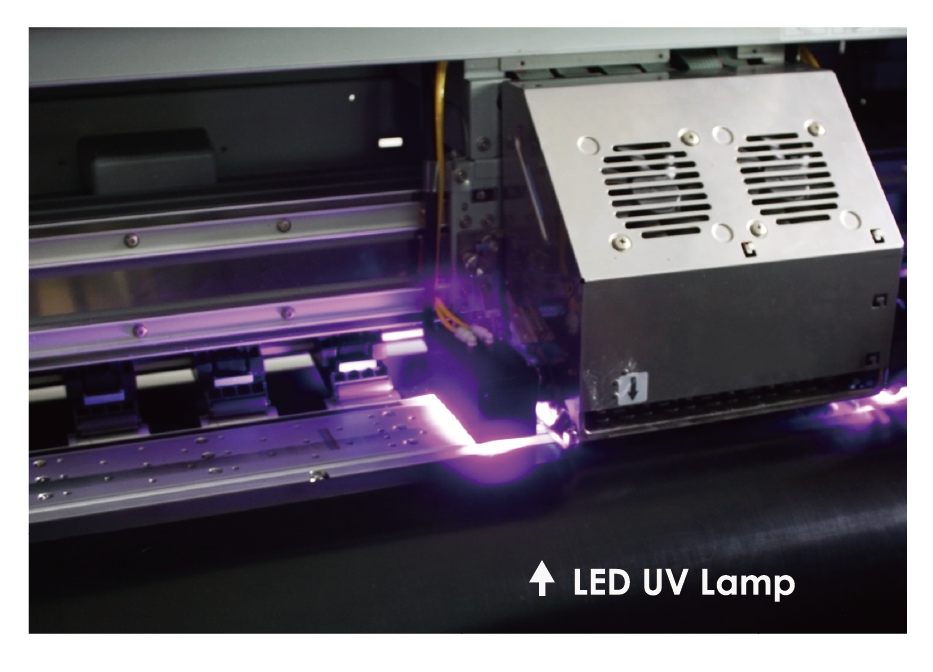

LED UV Technology/High product



LED UV Lamp fast drying printing technology,with the material perfect fuction.

LED UV controller can effectively control water circulation,cooling LED UV lamp,

to achieve the highest printing efficiency.


Alignment of double sided printing may be affected by media settings and media

advance adjustment.Double sided print can’t be used withpermeable media like

flexible face materials.


Mutiple take up system configuration:Loose/Inner, Loose/Outer, Tension/Inner, Tension/Outer.





Smart printing technology/ High Print Quailty



Dynamically processing 3 different drop sizes to maximize

image quality and maintain proper color density.


This innovative nozzle compensation function re-maps clogged

nozzles so you can continue to print with perfect image quality.


SmartPassTechnology 3 uses the most advanced algorithms and improved

mask patterns to reduce overspray and eliminate pass-to-pass banding.


CP Manager software allows you to monitor printer status, change print settings,

check ink levels, or see suggested maintenance on your PC.Operation and trouble

shooting guides are also available through CP_Manager.


Equipped with a function to give full play to the extreme

Inkjet Printer software.







SPECIFICATION

Model

FC-H104UV

FC-H74UV

Print Heads

Seiko 508

Resolution

900 dpi

Maximum Print Width

2632 mm

1890 mm

Media Weight

120 kg

50 kg

Maximum Media Diameter

350 mm

220 mm

Paper Feed Method

Roll



Ink

Types

SJ UV Ink

Colors of Ink

8 color (C,M,Y,K,Lc,Lm,Gray,Light Gray) or 4 color (C,M,Y,K) x 2

Ink Capacity

1500 ml

Media

Vinyl/banner/backlit films/textiles...

Take-up System

Tension/Loose/Inside/Outside

Interface

USB 2.0

Power Consumption

1440 W (in operation)

Power Voltage

200 to 240 VAC,±10%

Operating Environment

15-30,10to80% RH(with no condensation)

Storage Environment

5-35℃,10to80% RH(with no condensation)

External Dimension

4126(W)x1366(D)x1513(H) mm

3383(W)x1275(D)x1511(H) mm

Weight

600 kg

450 kg
